ZW32-12型系列户外高压真空断路器

● 概述

　　ZW32-12型户外高压真空断路器为额定电压12kV，三相交流50(60)Hz的户外高压开关设备，可作为分断、关合负荷电、过载电流及短路电流之用。适用于变电站及工矿企业配电系统中作保护和控制之用，及农村电网频繁操作的场合。产品符合GB1984-2014标准。

　　ZW32-12G断路器隔离开关组合电器由断路器本体和隔离开关两部分组成。

● 产品环境条件

　　环境温度：不高于+40℃,不低于-30℃；

　　海拔高度：不超过1000m；(除海拔特殊要求)

　　地震烈度：不超过8级；

　　相对湿度：日平均不大于95%，月平均不大于90%；

　　水蒸气压力：日平均不超过2.2kPa，月平均不超过1.8kPa；

　　风压：小于700a；(相当于风速34m/s)

　　空气污秽等级：Ⅲ级；

　　使用环境：在无火灾、爆炸危险、严重污秽、化学腐蚀及剧烈震动的场所。

● 真空断路器主要技术参数表

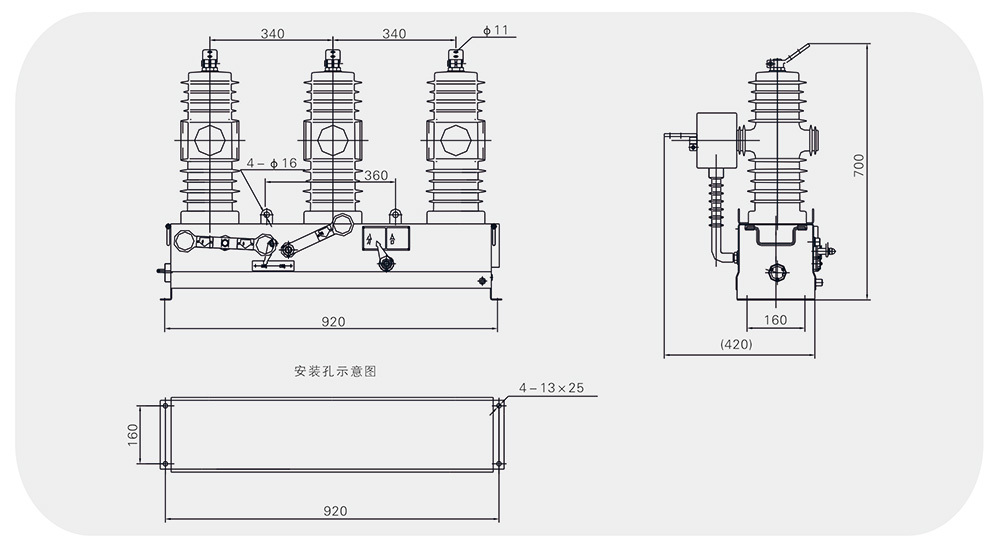

● 外形图

● 典型二次原理图
