Insulation Pulling Pole

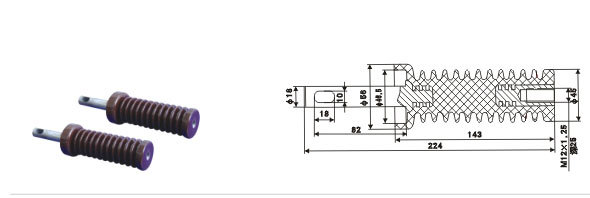

Name: Insulation pulling Pole

Used for: ZN23 circuit breaker

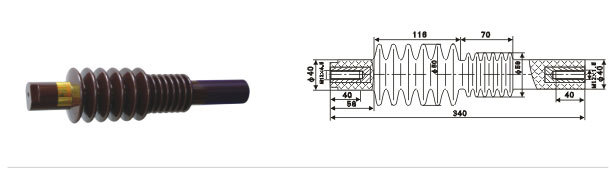

Name: Insulation pulling Pole

Used for: ZN39 circuit breaker

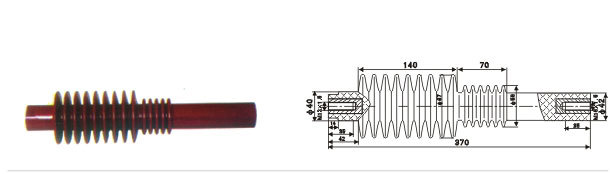

Name: Insulation pulling Pole

Used for: ZN28(A)K-1250 VCB

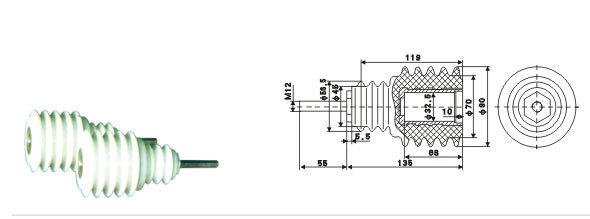

Name: Insulation pulling Pole

Used for: ZN68(12)-12 VCB

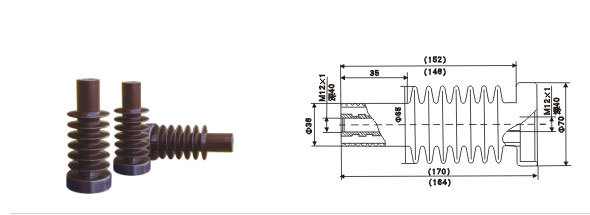

Name: Insulation supporting lever

Used for: ZN28(68)-12 VCB

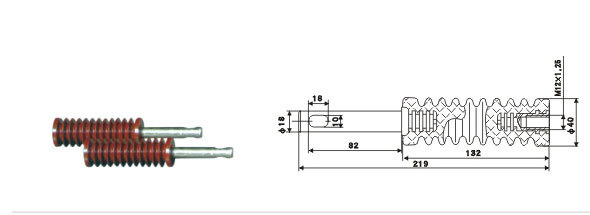

Name: Insulation pulling Pole

Used for: ZN12-40.5 VCB

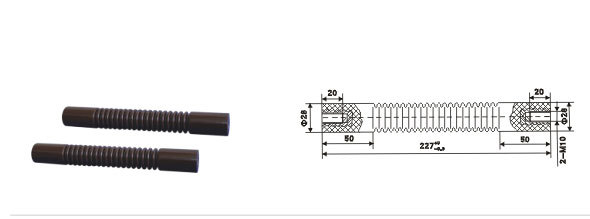

Name: Insulation pulling Pole

Used for: ZN63A-1250 VCB

Name: Insulation pulling Pole

Used for: ZN28A-1250 VCB

Insulation Supporte

40.5kV Insulation Barrier and contact box
