VS1/C-12型侧置式户內高压真空断路器

VS1/C-12型侧置式户內高压真空断路器，是以弹簧作为储能元件的操动机构，具有手动、电动两种操作形式

keyword：

category：

INDOOR 12KV HIGH VOLTAGE VACUUM CIRCUIT BREAKER

图片名称

tel：

VS1/C-12型侧置式户內高压真空断路器

● 概述

　　VS1/C-12型侧置式户內高压真空断路器，是以弹簧作为储能元件的操动机构，具有手动、电动两种操作形式，其性能符合我国国家标准GB1984-2014《高压交流断路器》、JB3855-1996《3.6～40.5kV户内交流高压真空断路器》和国际电工委员会IEC62271-100：2003《高压交流断路器》的有关规定。

● 使用环境条件及配柜宽度

　　环境温度：最高+40℃，最低-15℃；

　　相对湿度：日平均相对值≤95%；月平均相对值≤90%；日平均饱和蒸汽压≤2.2kpa；月平均饱和蒸汽压≤1.8kpa；

　　地震烈度：不超过8度；

　　海拔高度：不超过1000m；

　　使用环境：在无易燃、易爆、严重污秽、化学腐蚀及剧烈震动的场所；

　　配柜宽度：700mm。

　　

● 结构特点

　　1、断路器采用模块式操动机构，集成的储能手柄，整体布局合理、美观、简洁；

　　2、电器元件采用模块化设计，拆卸容易，损坏的电器元件更换方便；

　　3、断路器采用绝缘筒装配，提高了断路器的绝缘性能；

　　4、高寿命，断路器满足机械寿命M2级，电寿命E2；

　　5、具有优良的开断性能，可理想切合感性和容性负载；

● 真空断路器主要技术参数表

龙翔电器

● 外形图

龙翔电器

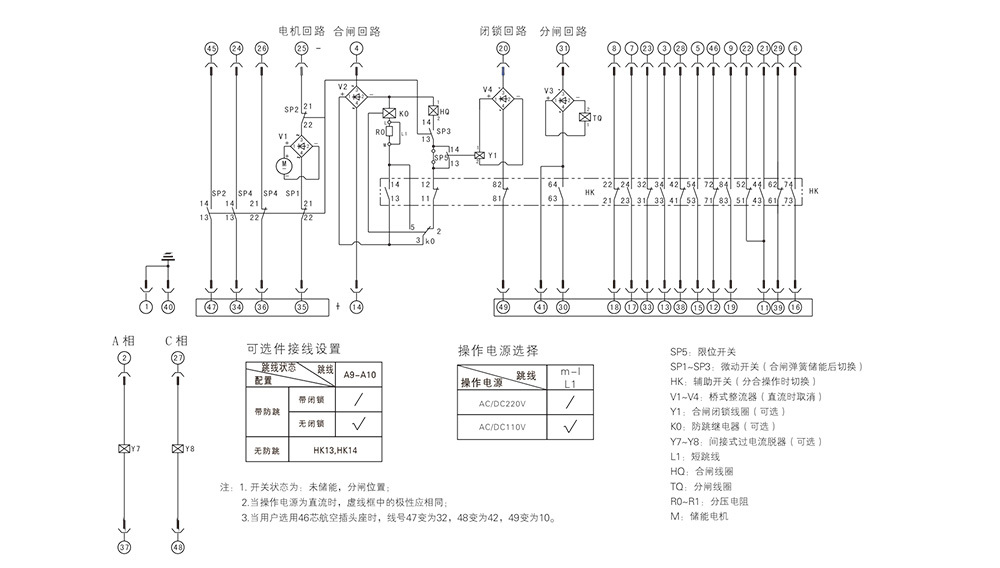

● 典型二次原理图

龙翔电器
