ZN12M-40.5C户内真空电弧炉专用手车式断路器

ZN12M-40.5C户内真空电弧炉专用手车式断路器，是三相交流50Hz，额定电压40.5kV的户内高压配电装置

keyword：

category：

INDOOR 40.5KV HIGH VOLTAGE VACUUM CIRCUIT BREAKER

图片名称

tel：

ZN12M-40.5C户内真空电弧炉专用手车式断路器

● 概述

　　ZN12M-40.5C户内真空电弧炉专用手车式断路器，是三相交流50Hz，额定电压40.5kV的户内高压配电装置。主要用于JYN1-35型和GBC-35型交流金属封闭移开式开关设备及企业老设备改造。可供工矿企业、发电厂及变电站电能的接受、控制和保护之用。尤其适用于钢铁、冶金企业等频繁操作的场所。产品符合GB1984-2014《交流高压断路器》、JB3855《3.6-40.5kV户内交流高压真空断路器》、DLT403《12405kV高压真空断路器订货技术条件》及IEC相关标准。

● 产品环境条件

　　周围空气温度：上限+40℃，且24h内测得的平均值不超过35℃；下限-15℃。

　　海拔高度：海拔不超过1000m，高海拔可达3000m(需非标评审)。

　　相对湿度：日平均值不超过95%，月平均值不超过90%。

　　水蒸气压力：日平均值不超过2.2kPa，月平均值不超过1.8kPa。

　　周围空气没有明显地受到尘埃、烟、腐蚀性和/或可燃性气体、蒸气或盐雾的污染。

　　无较强的振动与冲击

　　无强磁场。

　　在超过GB/T11022-2011规定的以上正常环境等条件下使用时，用户可与制造厂协商解决。

● 真空断路器主要技术参数表

龙翔电器

● 控制器主要技术参数

龙翔电器

● 机械特性参数

龙翔电器

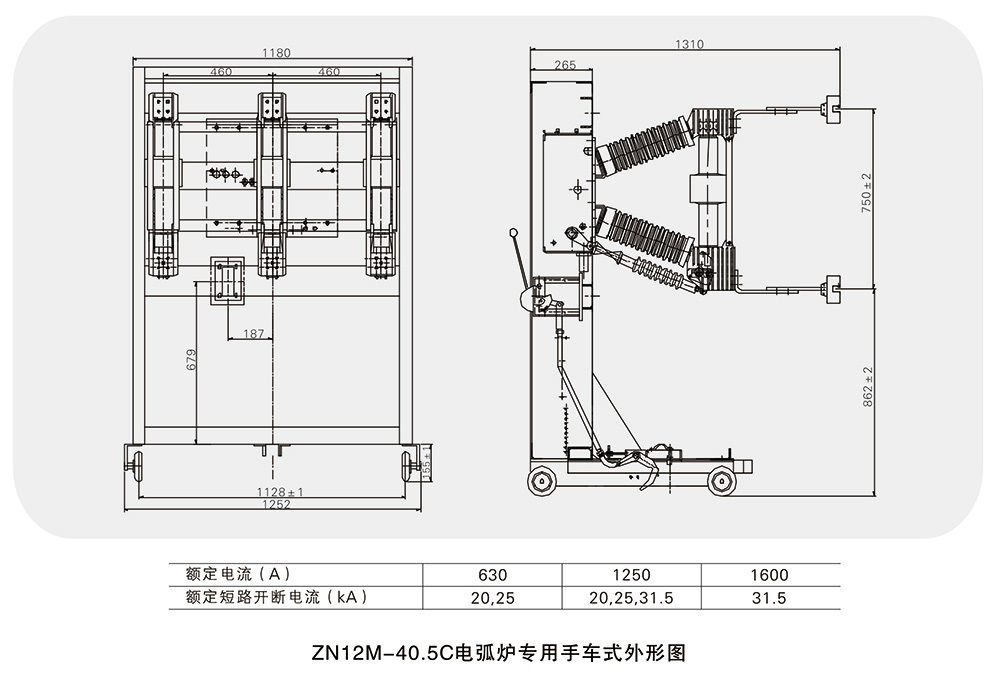

● 外形图

龙翔电器

● 典型二次原理图

龙翔电器
